HPLC Method for Analysis of Glutaric Anhydride on Newcrom R1 Column

HPLC-Applikation • Datum: 2022/06/13

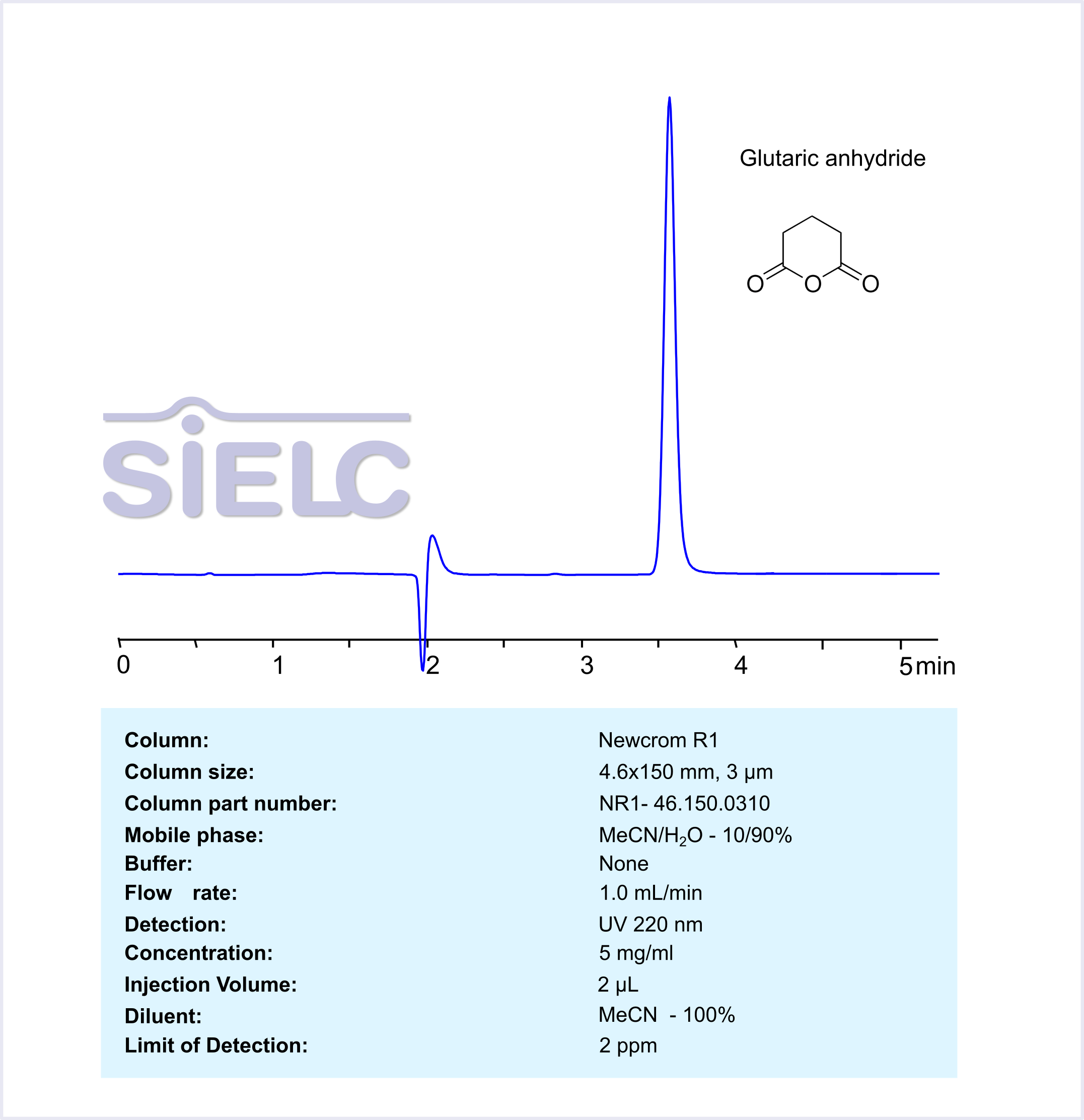

HPLC Method for Analysis of Glutaric Anhydride on Newcrom R1 Column Chromatogramm

Separation type: Liquid Chromatography Reverse Phase.

High Performance Liquid Chromatography (HPLC) Method for Analysis of Glutaric Anhydride

Glutaric Anhydride is a common intermediate used in the production of pharmaceuticals, corrosion inhibitors, and polymers. Glutaric Anhydride can be separated and analyzed on a Newcrom R1 reverse-phase column using a simple gradient analytical method with a mobile phase consisting of just Acetonitrile (MeCN) and water (with no ionic modifier). This analysis method can be UV detected at 220 nm with high resolution and peak symmetry.

Methodenparameter

ColumnNewcrom R1, 4.6 x 150 mm, 3 µm, 100 Å, dual ended
Mobile PhaseMeCN – 10%
BufferNo
Flow Rate1.0 mL/min
DetectionUV 220 nm
