Separation of Morphine on Newcrom R1 HPLC column

CALCULATED CHROMATOGRAM
https://sielc.com/separation-of-morphine-on-newcrom-r1-hplc-column
⬇ PDF Download

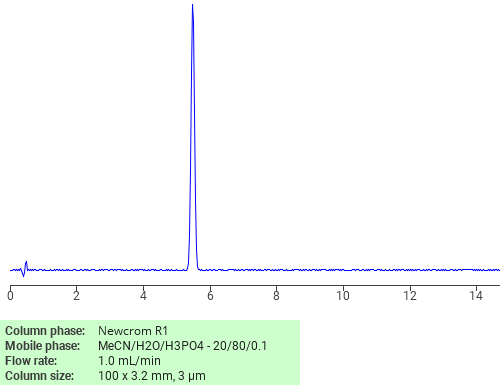

Chromatogram

CALCULATED CHROMATOGRAM – NOT AN EXPERIMENTAL RESULT
The result was obtained by a proprietary SIELC algorithm. It may deviate from the actual experimental data.

Description

Morphine is an opiate used to treat pain. It is extracted from opium poppies, specifically from the poppy straw. Morphine can be analyzed by this reverse phase (RP) HPLC method with simple conditions. The mobile phase contains acetonitrile (MeCN), water, and phosphoric acid. For Mass-Spec (MS) compatible applications the phosphoric acid needs to be replaced with formic acid. Smaller 3 µm particle columns are available for fast UPLC applications. This liquid chromatography method is scalable and can be used for isolation of impurities in preparative separation. It also suitable for pharmacokinetics.

Calculated chromatograms: Where marked, the chromatogram was calculated by a proprietary SIELC algorithm and may deviate from the actual experimental data.
